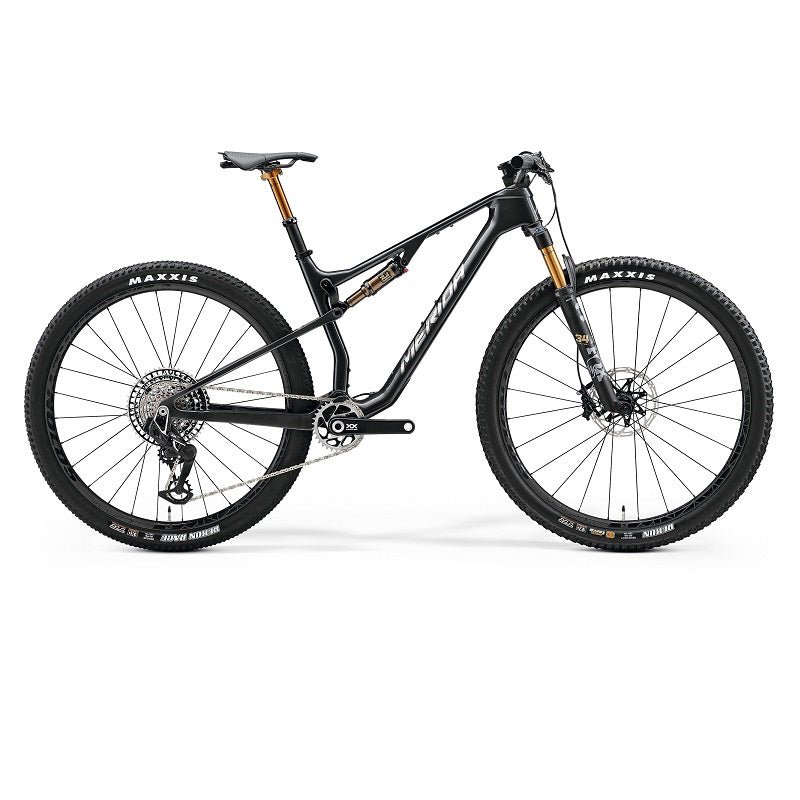

MERIDA Ninety Six RC 10K (2024)

FRAMENINETY-SIX RC CF5 III100 mm suspension travelmaterial: carbon29x2.35″ max. wheelsize148x12 mm axle standardBSA bottom bracket standard

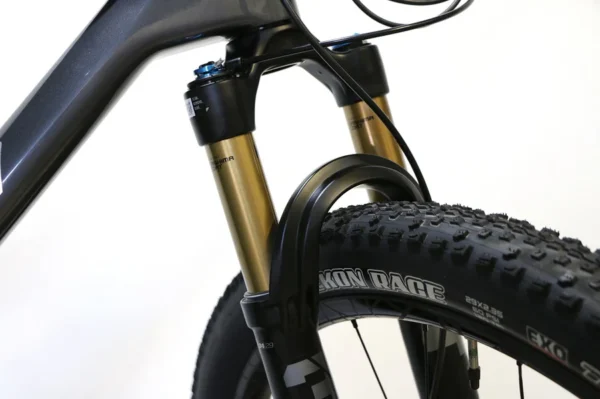

FORKFox 34 Float SC FactoryAir100 mm suspension travelTaperedRemote lockout44 mm fork offset29x2.4″ max. wheelsize
SHOCKFox Float SL Factory

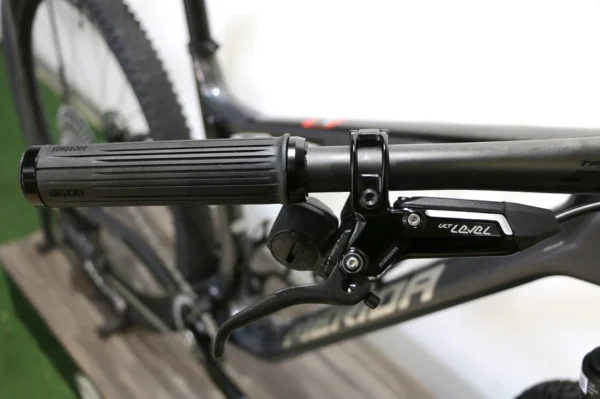

BRAKESSram Level Ultimate Stealth
ROTORSSram CenterLine X180 mm160 mm
HEADSETAcros ICR MERIDA INTEGRATED neck

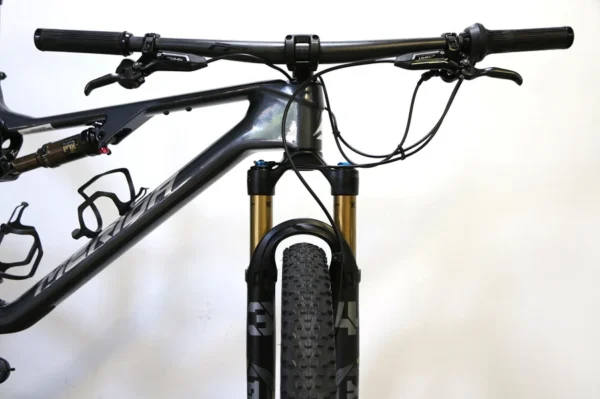

HANDLEBARMERIDA TEAM CC IImaterial: carbon760 mm width12.5 mm rise
HANDLEBAR STEMMERIDA TEAM CC IIImaterial: aluminium31.8 mm diameter-6° stem angleincl. MERIDA SMART MOUNTS:60 mm, M/L/XL:70 mm
GRIPRockShox TwistLoc grip

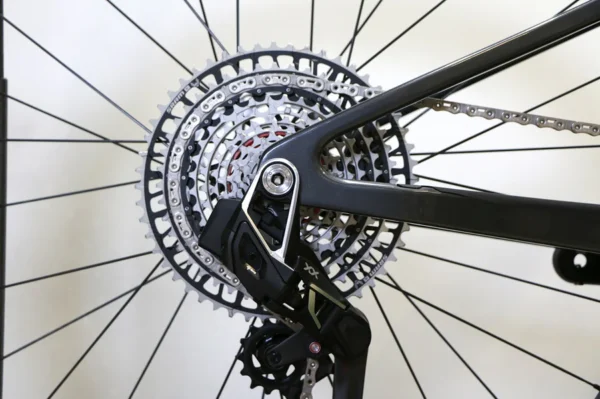

DERAILLEUR (R)Sram XX Eagle SL Transmission AXSwirelessT-Type
SHIFTERSSram AXS POD Ultimate Controller
SEAT POSTFox Transfer SL30.9 mm diameter0 mm setbackS/M/L/XL: 100 mm travel seatpost
SEAT CLAMPMERIDA EXPERT

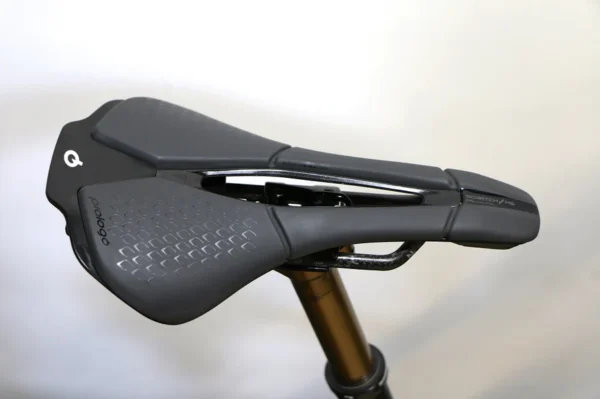

SADDLESCRATCH M5 PAS NACK
CHAINSram XX Eagle SL Transmission
CHAINWHEELSram XX SL Eagle Transmission32 teeth

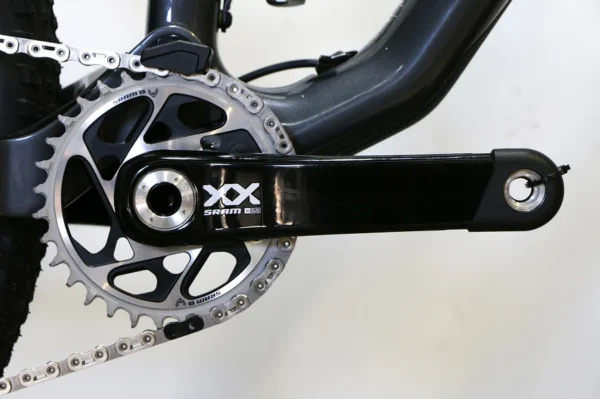

CRANKSram XX SL Eagle Transmission32 teeth170 mm-S, 175 mm-M up
FREEWHEELSram XX Eagle SL Transmission10-52 teeth12 speed
BOTTOM BRACKETSram DUB BSA 73 MTB WIDE
WHEELSETReynolds Blacklabel 309/289 XC110x15 mm width front hub148x12 mm width rear hub30/28 mm inner widthCenterlockShimano 12 Speedmaterial: carbonTubeless ready (tubeless tape and valves included)Lifetime warranty
TYRE FRONTMaxxis Rekon Race29x2.35″foldTR EXO 120 TPI
TYRE REARMaxxis Rekon Race29x2.25″foldTR EXO 120 TPI
AXLESMERIDA EXPERT TR
APPROX. WEIGHT10.7 kg
MAX. WEIGHT135 kg
To reduce production and delivery times the supplier sometimes have to make last-minute changes to product specifications. These updates may not always be reflected in the product descriptions or images on our website.
